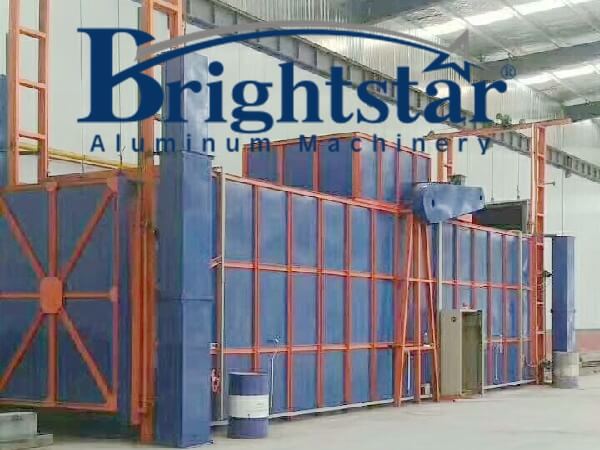

Nine Baskets Gas fired Double door aging furnace
Nine Baskets Gas fired Double door aging furnace
Nine Baskets Gas fired Double door aging furnace
An aluminum profile aging furnace is a crucial piece of equipment in the aluminum extrusion process.
It serves a vital role in enhancing the final product’s strength, dimensional stability, and corrosion resistance.
The function of the Furnace:
After aluminum profiles are extruded, they undergo a heat treatment process called “aging.”
Inside the aging furnace, profiles are exposed to specific temperatures (typically ranging from 180°C to 200°C) for a set duration (usually 2-4 hours).
This controlled heating allows the internal microstructure of the aluminum alloy to rearrange, leading to:
Increased hardness and tensile strength.
Improved resistance to deformation and warping.
Enhanced corrosion resistance.
The aluminum profile aging furnace is a device in the aluminum profile heat treatment production process, and the extruded aluminum profile needs to make an aging heat treatment before going to the surface treatment process of polishing, anodizing and powder coating.
The aging of aluminum profiles is one of the key processes of heat treatment.
The heating rate and furnace temperature uniformity of this process are strictly required, and the aging temperature of the process is mostly (210±5) °C.
Aging furnace applies to aging-treatment for aluminum profiles to enhance product-hardness, which is conducive to the operation of subsequent processes and storage, transportation, as well as the normal use of customers.
Aging treatment is carried out in the aging furnace. The aging furnace is composed of a furnace body, charging car, hot air system and electrical control.
Design key point of nine baskets gas-fired double door aging furnace
After the hot air is pressurized by the fan impeller and heated at a constant temperature through the air duct, it enters the diversion channel on the end of the feed truck, flows through the aluminum profile, then enters the return duct through the diversion device, and finally returns to the inlet of the fan.
This cycle and constant temperature heating, and is the interval of the reverse cycle, to ensure that the temperature is uniform
Technical data of nine baskets gas-fired double door aging furnace
| 1 | Production capacity | 4-10 Tons/Time |
| 2 | Furnace Body Bracket | 20＃、16＃、12＃、10＃channel steel |
| 3 | Furnace Chamber | 8＃、6＃、10＃channel steel and 5＃angle iron |
| 4 | Inside and Outside Seal Plate for Furnace body | A3 steel plate |
| 5 | Overall Size of Furnace | 9300×3600×4500mm |
| 6 | Chamber Size | 8500×3000×2300mm (Change according to material basket size) |
| 7 | Furnace Door | Lift and down drive by 2 sets worm gear reducer |
| 8 | Burning Barrels | Made of 5mm SUS 310S stainless steel (gas-fired) |
| 9 | Operating Temperature | The rated temperature: 180℃ — 250℃, temperature measurement at 3 points, hot air circulation, temperature difference ≤ + 5 ℃ |
| 10 | Heating up time | ≤2 hours |
| 11 | Holding time | Setting according to processing |
| 12 | Fuel | Natural gas（8300kcal/m3） |
| 13 | Maximum Combustion | 52m3/HR |
| 14 | Energy Consumption | Natural gas 5-7m3/T |
| 15 | Electrical Power Rate | 65kw |
| 16 | Material Basket sizes | 6000×900×600mm |
| 17 | Basket Qty | 9 Pieces |
| 18 | Burner | Energy-saving burner is adopted, the time from room temperature to heat preservation time:≤120 mins |
Nine Baskets Gas-fired Double Door Aging Furnace:
This specific type of aging furnace offers several advantageous features:
Nine Baskets: This allows for increased batch capacity, efficiently processing more profiles at once.
Gas-fired Heating: Offers a cost-effective and reliable heating method compared to electric options.
Double Door Design: Provides convenient loading and unloading access, improving operation efficiency and operator comfort.
Potential Advantages of the Nine Baskets Gas-fired Double Door Aging Furnace:
Higher Production Rates: Due to increased capacity and efficient loading/unloading.
Reduced Operational Costs: From using natural gas for heating.
Improved Ergonomics and Safety: Double doors can enhance operator comfort and minimize heat exposure.
Enhanced Process Control: Precise temperature control systems ensure optimal aging conditions.
Additional Information:
While these features offer potential advantages, specific benefits might depend on your production volume, budget, and other factors.
Consider consulting with manufacturers or aluminum industry experts to assess if the Nine Baskets Gas-fired Double Door Aging Furnace is the best fit for your specific needs.
