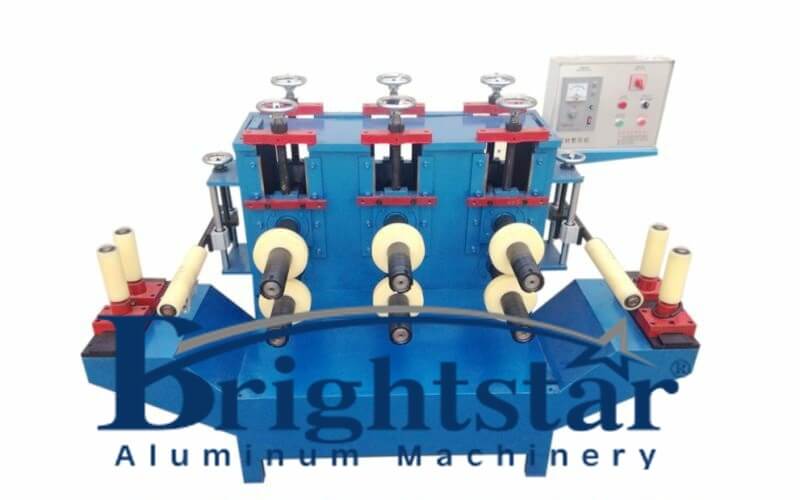

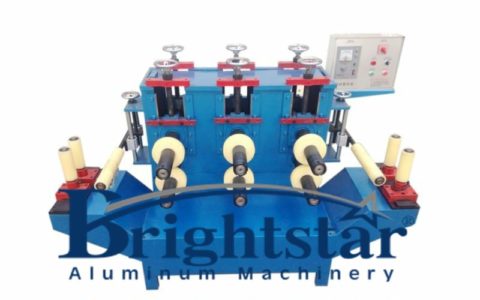

  • Three group aluminum profile shape correcting machine

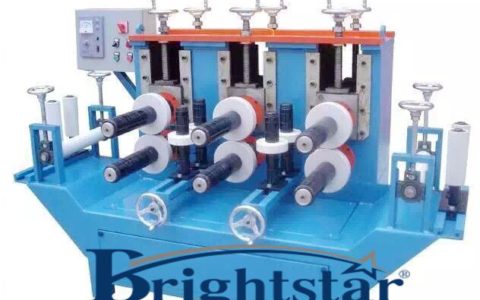

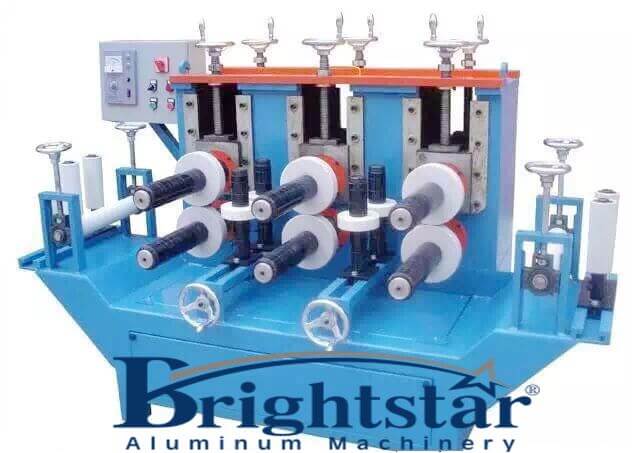

  • Aluminum profile shape correction machine

Aluminum profile shape correcting machine

Aluminum profile shape correcting machine

Aluminum profile shape correcting machine

Aluminum profile shape correcting machine, also known as aluminum profile shape corrector.

An Aluminum Profile Shape Correcting Machine is a specialized piece of equipment used to rectify imperfections in the shape of pre-formed aluminum profiles.

These imperfections can arise from various reasons, such as thermal stress during extrusion, handling mishandling, or residual internal stresses.

This machine helps ensure consistently accurate and aesthetically pleasing profiles for downstream applications.

It is an ideal machine to correct the dimension and tolerance of aluminum profiles and regulate aluminum profile’s angle degree, which is mainly used for shaping and correcting of the profiles for the dimensions and tolerances.

Function:

Profile Feeding: The machine accepts pre-formed aluminum profiles through a roller system.

Correction Application: Depending on the specific model, the machine might employ various mechanisms to correct the shape

Rolling systems: Pass the profile through sets of precisely adjustable rollers that gradually correct minor deviations.

Roller conveyor: feed in roller conveyor and feed out conveyor for aluminum profiles conveying.

Advantages:

Improved profile quality: Ensures consistent and accurate shapes, enhancing the overall quality and visual appeal of the profiles.

Reduced downstream rejection rates: Minimizes the risk of profiles being rejected during further processing or installation due to shape discrepancies.

Enhanced product functionality: Accurate shapes guarantee proper fit and performance in applications like window frames, building cladding, or furniture components.

Increased customer satisfaction: Consistent quality profiles lead to higher customer satisfaction and brand reputation.

Improved efficiency: Automated machines streamline the correction process, increasing overall production throughput.

Applications:

Architectural and construction: Correcting shapes of window frames, door frames, cladding profiles, and building components.

Furniture and interior design: Ensuring precise shapes for furniture frames, shelves, decorative elements, and other aluminum components.

Automotive and transportation: Adjusting shapes of trim pieces, bumpers, and other exposed aluminum elements.

Electronics and appliance manufacturing: Correcting shapes of aluminum casings and components for optimal fit and function.

Main technical data

Overall dimension: L 2900mmX W 1600mmX H1900mm

The maximum size of aluminum profiles for the correcting, correction roller φ200, top and bottom 300X400mm, right and left  200X200mm

The upper and lower shaft distance adjustment range: 180~400mm

Feeding speed: 0~30m/min

The diameter of working roller φ90mm

Total power 5.5KW

Features of Aluminum profile shape correcting machine

Simple operation and easy maintenance

Good performance and high efficiency

Stable and reliable working

The vertical roller uses a dovetail groove

Correction shaft lock-in function

Self-made king-size coarse pitch-locking nut

Aluminum profile shape correcting machine improves the rate of aluminum profile products and reduces the waste rate greatly, increasing the profit and cutting down production costs.

It is a good auxiliary equipment for aluminum extrusion profile correcting.

Overall, Aluminum Profile Shape Correcting Machines play a crucial role in maintaining the quality and accuracy of aluminum profiles across various industries.

Their ability to identify and rectify discrepancies enhances both the functionality and aesthetics of the profiles, leading to significant benefits for manufacturers, architects, designers, and ultimately, the end consumers.
