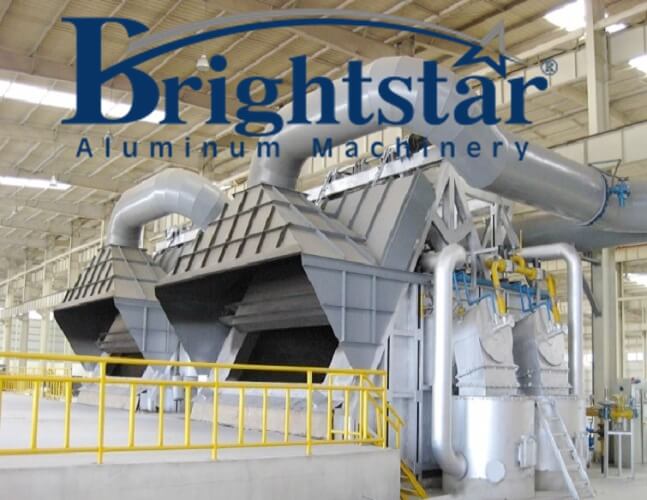

Aluminum scrap melting furnace

Aluminium scrap melting furnace

Aluminium scrap melting furnace

Aluminium scrap melting furnace

Main applications

BS aluminum scrap melting furnace is mainly used for the melting and refining of recycled aluminum (such as UBC, brake pads, heating plate, machinery waste aluminum, etc.).

It is also suitable for high-temperature melting of solid aluminum, aluminum alloy liquid storage and high melting point alloy melting, applicable equipment for the pre-melting in the manufacture of high-quality aluminum alloy rods, aluminum logs and aluminum plates etc.

It is one kind of high efficiency and energy-saving environmental friendly machine.

Technical features and performance

Made up of rectangular furnace body, mechanical lifting furnace door, air supply combustion system, exhaust pipe, launder etc.

Furnace shell, bottom, outside reinforcement adopts GB high quality steel plate and steel welding. The main working lining can be made of high alumina brick masonry, but also can be used non-stick aluminum castables; the other parts are made by relevant refractory materials, insulation material masonry.

Furnace door skimming parts adopts integral casting by superfine special casting for furnace door, can guard against long-term forklift charging and skimming impact and wearing for the furnace door.

Adopt automatic lifting furnace door,chain mechanical transmission device with electromagnetic brake motor with cycloid reducer, equipped with Anti-fall track and weight box. Design in ramp furnace door for the forklift operation convenience.

Combustion system can be equipped different models of manual, semi-automatic, automatic gas burner, natural gas burner, oil burner and regenerative burner according to different models furnaces.

Main technical parameter of  aluminium scrap melting furnace



Model (BS)10T (BS)20T (BS)30T (BS)40T (BS)50T (BS)70T
Outline dimension Length 2200 3000 3200 3500 3800 4800
  Width 4200 5200 6400 7400 7800 8700
Height 3450 3500 3550 3600 3650 3650
Capacity(T) 10+8% 20+10% 30+10% 40+10% 50+10% 70+10%
Furnace door size(mm) 2000×1300 2500×1300 3000×1300 3500×1300 4000×1300 5000×1300
Burner model(104Kcal/t) 220 160×2 set 220x2set 300x2set 300x3set 400x3set
Total power(KW) 40.5 60.5 92.5 149 178.5 224.5
Melting speed(t/h) 2~3 4~5 5~6 6~7 7~8 9~10
Natural gas consumption(m3/t) 60~65 65~70 65~70 65~70 70~75 70~75
Aoo aluminum ingot burning loss ≤0.5% ≤0.5% ≤0.5% ≤0.5% ≤0.5% ≤0.5%
